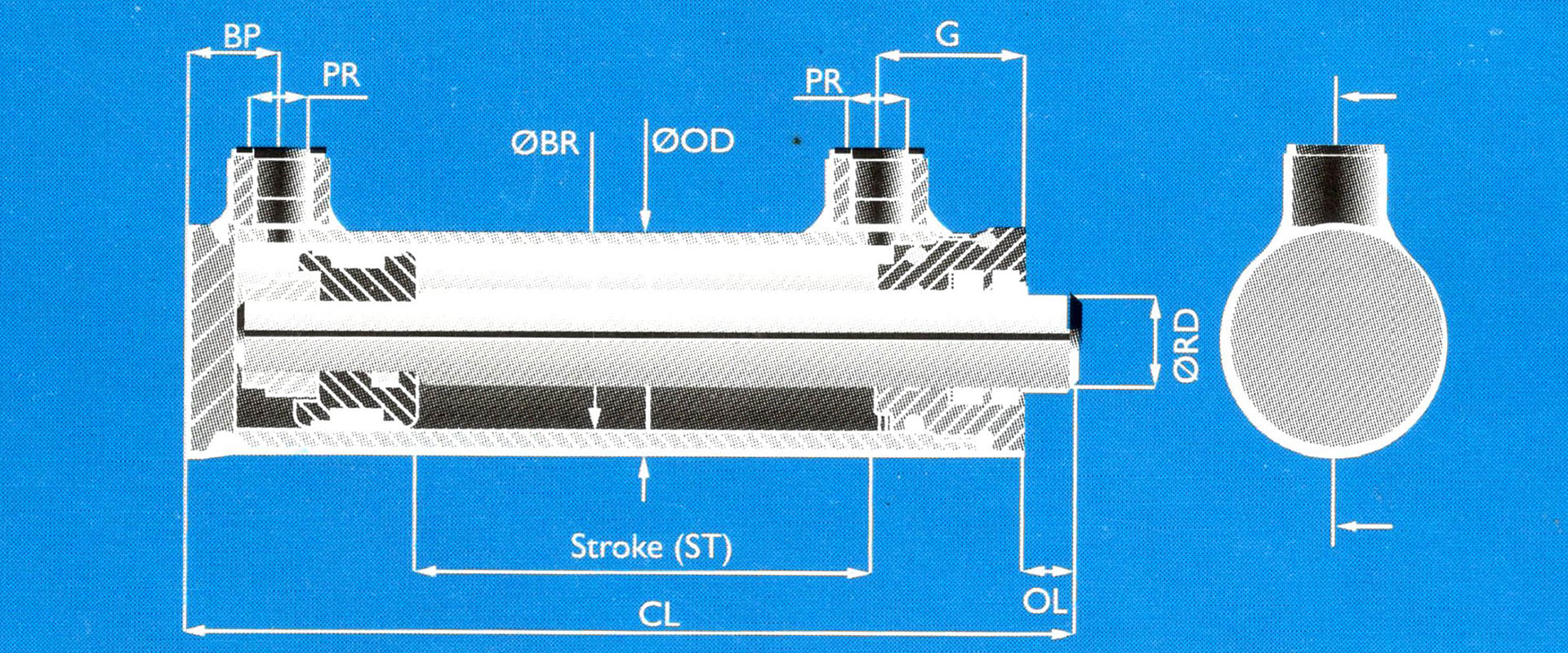

DOUBLE ACTING CYLINDERS

JSC 200 SERIES

Code	ɸOD	ɸBR	ɸRD	STROKE	CL	OL	PR	G	BP
JSSI040020100				100	195
JSSI040020150				150	245
JSSI040020200				200	295
JSSI040020250				250	345
JSSI040020300	50	40	20	300	395	12	1/4"	32	20
JSSI040020350				350	445
JSSI040020400				400	495
JSSI040020450				450	545
JSSI040020500				500	595
JSSI040025100				100	205
JSSI040025150				150	255
JSSI040025200				200	305
JSSI040025250				250	355
JSSI040025300	50	40	25	300	405	13	3/8"	36	22
JSSI040025350				350	455
JSSI040025400				400	505
JSSI040025450				450	555
JSSI040025500				500	605
JSSI040030100				100	205
JSSI040030150				150	255
JSSI040030200				200	305
JSSI040030250				250	355
JSSI040030300	60	50	30	300	405	13	3/8"	36	22
JSSI040030350				350	455
JSSI040030400				400	505
JSSI040030450				450	555
JSSI040030500				500	605
JSSI060030100				100	220
JSSI060030150				150	270
JSSI060030200				200	320
JSSI060030250				250	370
JSSI060030300	70	60	30	300	420	13	3/8"	39	25
JSSI060030350				350	470
JSSI060030400				400	520
JSSI060030450				450	570
JSSI060030500				500	620
Code	ɸOD	ɸBR	ɸRD	STROKE	CL	OL	PR	G	BP
JSSI060035100				100	220
JSSI060035150				150	270
JSSI060035200				200	320
JSSI060035250				250	370
JSSI060035300	70	60	35	300	420	13	3/8"	39	25
JSSI060035350				350	470
JSSI060035400				400	520
JSSI060035450				450	570
JSSI060035500				500	620
JSSI070035100				100	220
JSSI070035150				150	270
JSSI070035200				200	320
JSSI070035250				250	370
JSSI070035300	80	70	35	300	420	13	3/8"	39	25
JSSI070035350				350	470
JSSI070035400				400	520
JSSI070035450				450	570
JSSI070035500				500	620
JSSI070040100				100	220
JSSI070040150				150	270
JSSI070040200				200	320
JSSI070040250				250	370
JSSI070040300	80	70	40	300	420	13	3/8"	39	25
JSSI070040350				350	470
JSSI070040400				400	520
JSSI070040450				450	570
JSSI070040500				500	620

JSC H250 SERIES

Code	ɸOD	ɸBR	ɸRD	STROKE	CL	OL	PR	G	BP
JSSI025016050				50	135
JSSI025016100	35	25	16	100	185	17	1/4"	33	15
JSSI025016150				150	235
JSSI025016200				200	285
JSSI032020050				50	155
JSSI032020100				100	205
JSSI032020150				150	255
JSSI032020200				200	305
JSSI032020250	40	32	20	250	355	16	1/4"	33	20
JSSI032020300				300	405
JSSI032020450				450	505
JSSI032020500				500	605
JSSI040020100				100	230
JSSI040020150				150	280
JSSI040020200				200	330
JSSI040020250	50	40	20	250	380	22	1/4"	40	23
JSSI040020300				300	430
JSSI040020350				350	480
JSSI040020400				400	530
JSSI040020450				450	580
JSSI040020500				500	630
JSSI040025100				100	230
JSSI040025150				150	280
JSSI040025250				200	330
JSSI040025250				250	380
JSSI040025300	50	40	25	300	430	22	1/4"	40	23
JSSI040025350				350	480
JSSI040025400				400	530
JSSI040025450				450	580
JSSI040025500				500	630
JSSI040025550				450	580
JSSI040025600				500	630
JSSI050025100				100	240
JSSI050025150				150	290
JSSI050025200				200	340
JSSI050025250				250	390
JSSI050025300				300	440
JSSI050025350	60	50	25	350	490	22	3/8"	43	26
JSSI050025400				400	540
JSSI050025450				450	590
JSSI050025500				500	640
JSSI050025550				550	690
JSSI050025600				600	740
JSSI050025800				800	940
JSSI0500251000				1000	1140
Code	ɸOD	ɸBR	ɸRD	STROKE	CL	OL	PR	G	BP
JSSI050030150				150	290
JSSI050030200				200	340
JSSI050030300				250	390
JSSI050030300				300	440
JSSI050030350				350	490
JSSI050030400				400	540
JSSI050030450	60	50	30	450	590	22	3/8"	43	26
JSSI050030500				500	640
JSSI050030550				550	690
JSSI050030600				600	740
JSSI050030700				700	840
JSSI050030800				800	940
JSSI0500301000				1000	1140
JSSI060030100				100	260
JSSI060030150				150	310
JSSI060030200				200	360
JSSI060030250				250	410
JSSI060030300				300	460
JSSI060030350				350	510
JSSI060030400	70	60	30	400	560	23	3/8"	50	30
JSSI060030450				450	610
JSSI060030500				500	660
JSSI060030550				550	710
JSSI060030600				600	760
JSSI060030800				800	960
JSSI060031000				1000	1160
JSSI060035100				100	260
JSSI060035150				150	310
JSSI060035200				200	360
JSSI060035250				250	410
JSSI060035350				300	460
JSSI060035350				350	510
JSSI060035400	70	60	35	400	560	23	3/8"	50	30
JSSI060035450				450	610
JSSI060035500				500	660
JSSI060035550				550	710
JSSI060035600				600	760
JSSI060035800				800	960
JSSI060031000				1000	1160
JSSI060040200				200	360
JSSI060040250				250	410
JSSI060040300				300	460
JSSI060040350				350	510
JSSI060040400				400	560
JSSI060040450	70	60	40	450	610	23	3/8"	50	30
JSSI060040500				500	660
Code	ɸOD	ɸBR	ɸRD	STROKE	CL	OL	PR	G	BP
JSSI060040550				550	710
JSSI060040600				600	760
JSSI060040800				800	960
JSSI0600401000				1000	1160
JSSI063040200				200	360
JSSI063040250				250	410
JSSI063040300				300	460
JSSI063040350				350	510
JSSI063040400				400	560
JSSI063040450				450	610
JSSI063040500	75	63	40	500	660	23	3/8"	50	30
JSSI063040550				550	710
JSSI063040600				600	760
JSSI063040800				800	960
JSSI063041000				1000	1160
JSSI070035100				100	260
JSSI070035150				150	310
JSSI070035200				200	360
JSSI070035250				250	410
JSSI070035300				300	460
JSSI070035350				350	510
JSSI070035400	80	70	35	400	560	23	3/8"	50	33
JSSI070035450				450	610
JSSI070035500				500	660
JSSI070035550				550	710
JSSI070035600				600	760
JSSI070035800				800	960
JSSI0700351000				1000	1160
JSSI070040200				200	360
JSSI070040250				250	410
JSSI070040300				300	460
JSSI070040350				350	510
JSSI070040400				400	560
JSSI070040450	80	70	40	450	610	23	3/8"	50	33
JSSI070040500				500	660
JSSI070040550				550	710
JSSI070040600				600	760
JSSI070040800				800	960
JSSI0700401000				1000	1160
JSSI080040200				200	380
JSSI080040250				250	430
JSSI080040300				300	480
JSSI080040400	92	80	40	400	580	25	1/2"	60	35
JSSI080040500				500	680
JSSI080040600				600	780
JSSI080040800				800	980
JSSI0800401000				1000	1180
Code	ɸOD	ɸBR	ɸRD	STROKE	CL	OL	PR	G	BP
JSSI080050200				200	380
JSSI080050250				250	430
JSSI080050300				300	480
JSSI080050400	92	80	50	400	580	25	1/2"	60	35
JSSI080050500				500	680
JSSI080050600				600	780
JSSI080050800				800	980
JSSI080051000				1000	1180
JSSI100050200				200	410
JSSI100050250				250	460
JSSI100050300				300	510
JSSI100050400	115	100	50	400	610	25	1/2"	82	38
JSSI100050500				500	710
JSSI100050600				600	810
JSSI100050800				800	1010
JSSI100051000				1000	1210
JSSI100060300				300	510
JSSI100060400				400	610
JSSI100060500				500	710
JSSI100060600	115	100	60	600	810	25	1/2"	82	38
JSSI100060800				800	1010
JSSI100051000				1000	1210

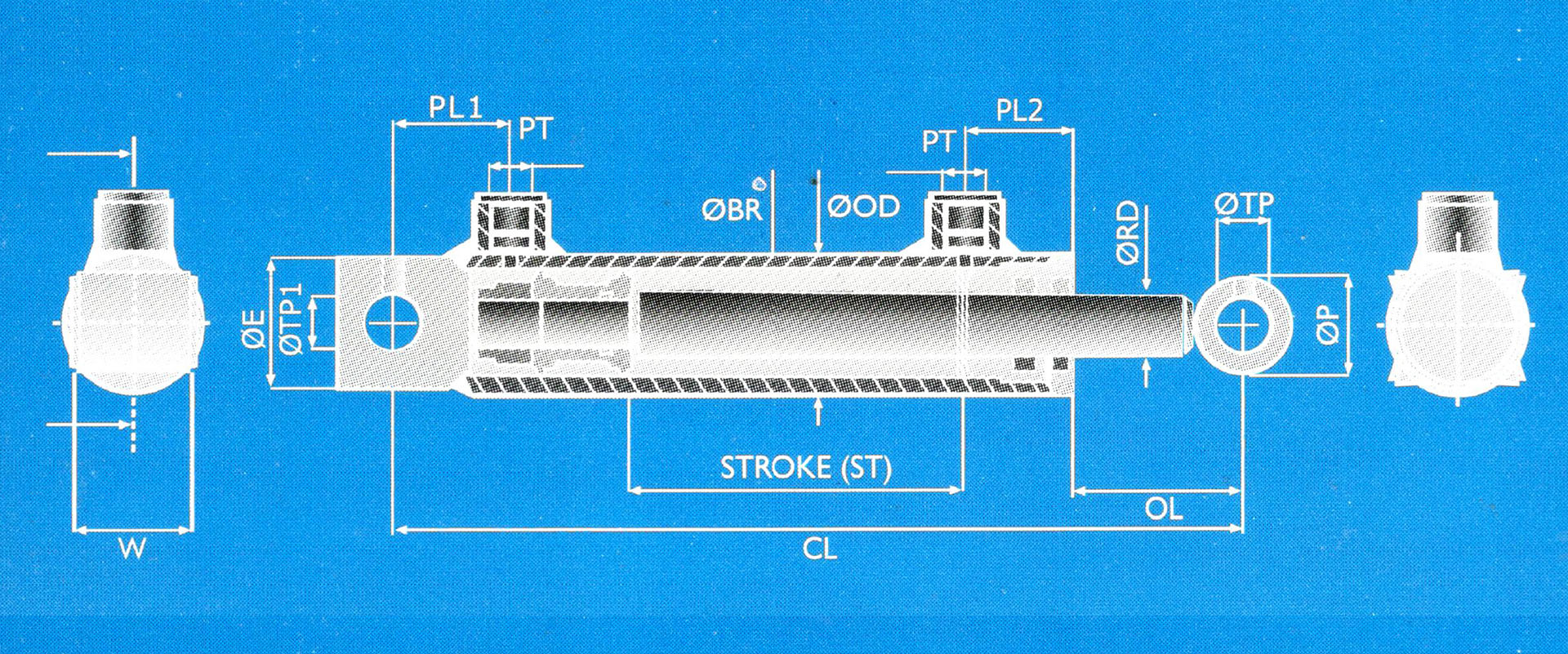

JSC HF250 SERIES

Code	ɸOD	ɸBR	ɸRD	STROKE	CL	PR	OL	OL2	PL1	ɸE	ɸTP, ɸTP1	ɸP	W
JSSI025016050				50	160
JSSI025016100				100	210
JSSI025016150	35	25	16	150	260	1/4"	31	23	22	35	12.1	25	25
JSSI025016200				200	310
JSSI032020050				50	205
JSSI032020100				100	255
JSSI032020150				150	305
JSSI032020200	42	32	20	200	355	1/4"	51	33	35	40	16.2	30	35
JSSI032020250				250	405
JSSI032020300				300	455
JSSI032020400				400	555
JSSI032020500				500	655
JSSI040025100				100	270
JSSI040025150				150	320
JSSI040025200				200	370
JSSI040025250				250	420
JSSI040025300	50	40	25	300	470	3/8"	42	40	45	50	20.5	40	40
JSSI040025400				400	570
JSSI040025500				500	670
JSSI040025600				600	770
JSSI040025700				700	870
JSSI040025800				800	970
JSSI050030100				100	300
JSSI050030150				150	350
JSSI050030200				200	400
JSSI050030250				250	450
JSSI050030300	60	50	30	300	500	3/8"	47	43	58	60	25.5	50	45
JSSI050030400				400	600
JSSI050030500				500	700
JSSI050030600				600	800
JSSI050030700				700	900
JSSI050030800				800	1000
JSSI060030100				100	300
JSSI060030150				150	350
JSSI060030200				200	400
JSSI060030250				250	450
JSSI060030300				300	500
JSSI060030350	70	60	30	350	550	3/8"	48	50	58	70	25.5	50	45
JSSI060030400				400	600
JSSI060030450				450	650
JSSI060030500				500	700
JSSI060030600				600	800
JSSI060030700				700	900
Code	ɸOD	ɸBR	ɸRD	STROKE	CL	PR	OL	OL2	PL1	ɸE	ɸTP, ɸTP1	ɸP	W
JSSI060030200				200	400
JSSI060030300				300	500
JSSI060030400	70	60	35	400	600	3/8"	48	50	58	70	25.5	50	45
JSSI060030500				500	700
JSSI060030600				600	800
JSSI060030700				700	900
JSSI070040200				200	410
JSSI070040250				250	460
JSSI070040300				300	510
JSSI070040350				350	560
JSSI070040400	80	70	40	400	610	3/8"	48	50	58	80	30.5	50	55
JSSI070040450				450	660
JSSI070040500				500	710
JSSI070040600				600	810
JSSI070040700				700	910
JSSI080040200				200	410
JSSI080040250				250	460
JSSI080040300				300	510
JSSI080040350	90	80	40	350	560	3/8"	38	60	58	90	30.5	50	55
JSSI080040400				400	610
JSSI080040500				500	710
JSSI080040600				600	810
JSSI080040700				700	910
JSSI100050200				200	425
JSSI100050300				300	525
JSSI100050400	115	100	50	400	625	3/8"	46	82	50	115	30.5	65	70
JSSI100050500				500	725
JSSI100050700				700	925
